6063-T5 Aluminum profile specification and use

6063 T5 Aluminum Profile is a versatile and cost-effective option for various applications requiring good mechanical strength, corrosion resistance and ease of fabrication.

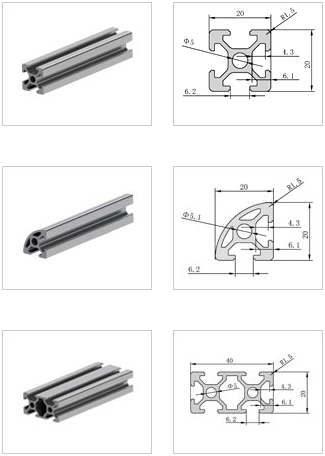

20 series

20 series aluminum profiles mainly include 2020, 2020R, 2040, 2060, 2080 and 4040 (double slot) and other specifications. The surface is sandblasted and silver anodized, which has strong weather resistance, corrosion resistance and oxidation resistance. The groove width of 20 series aluminum profiles is 6mm, and it needs to be matched with 20 series special fastening connection accessories to realize the assembly and construction of the frame structure;; the  20 series aluminum profiles  are light frame materials with relatively low physical strength and bearing capacity, and are mainly suitable for For the design and assembly of some light frame structures, such as: equipment shields, light equipment frames, scientific research experimental models, etc.

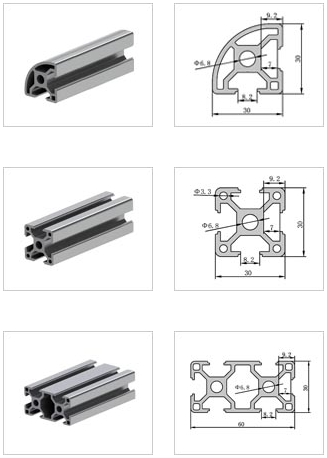

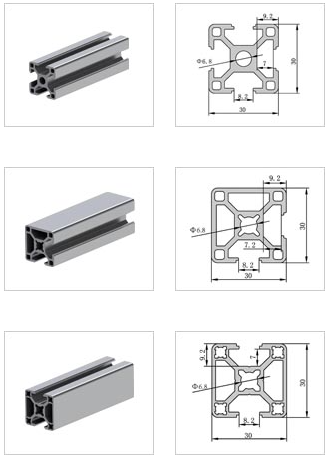

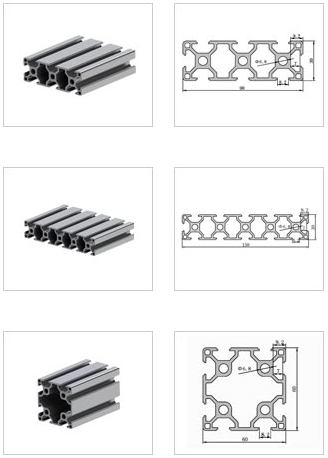

30 series

30 series aluminum profile products mainly include 3030, 3030-2N90, 3030-2N180, 3030R, 3030 heavy-duty aluminum profiles, 3060, 3090, 30150 and 6060 (double-slot) specifications, Among them, the 6060 double-slot aluminum profile belongs to the 30 series of heavy-duty frame profiles, which can be used in conjunction with other specifications for the design and assembly of some frame structures with higher bearing capacity requirements; the groove width of the 30 series aluminum profiles is 8mm, which is mainly suitable for some industrial frame structures with relatively high physical performance requirements. , such as assembly line consoles, equipment shields, material racks, material carts, etc.

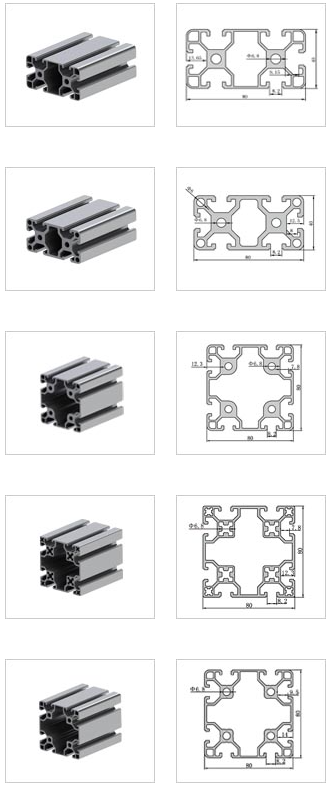

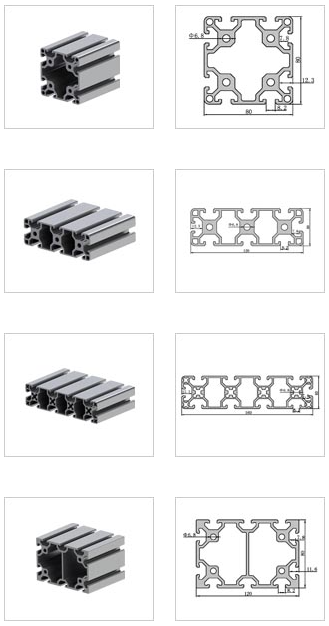

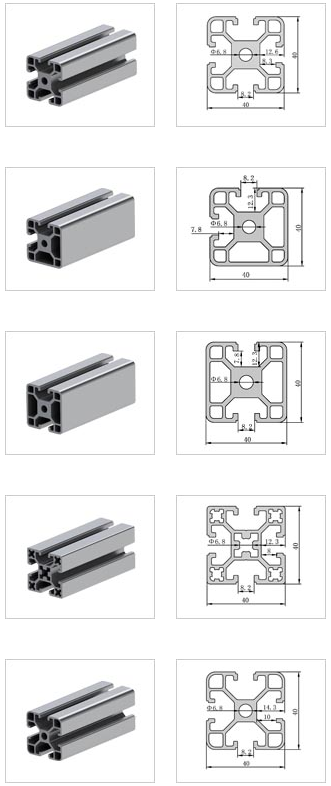

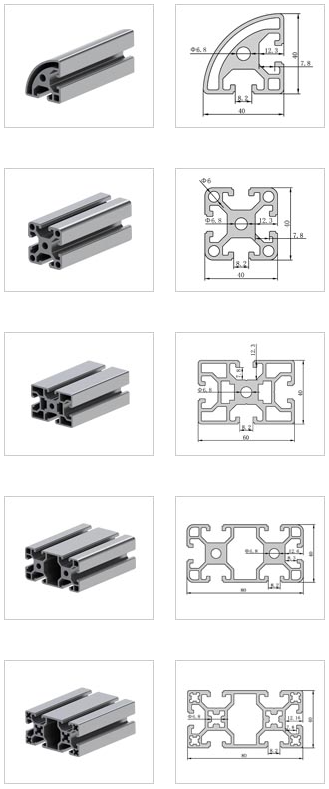

40 series

40 series aluminum profiles are the most widely used products in 6063-T5 frame profiles, including a variety of large or heavy frame profiles, such as: 4080, 4080 light, 4080 heavy, 8080, 8080 light, 8080 heavy, 80120 and other specifications; the aluminum profiles of this specification are mainly used for the design and assembly of frame structures with high physical properties, strong bearing capacity and strong yield resistance, such as: workshop protective fences, assembly line consoles,  aluminum profile racks , scientific research experiment platforms, equipment protective cover, etc.

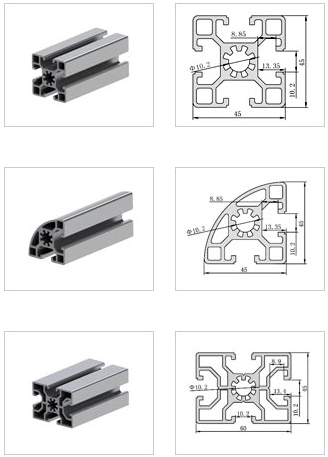

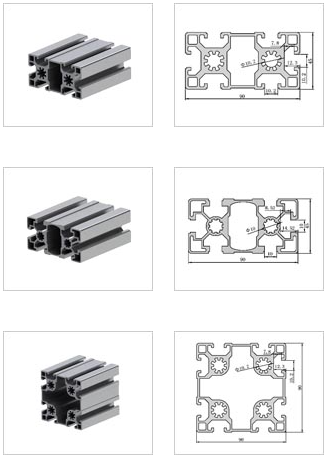

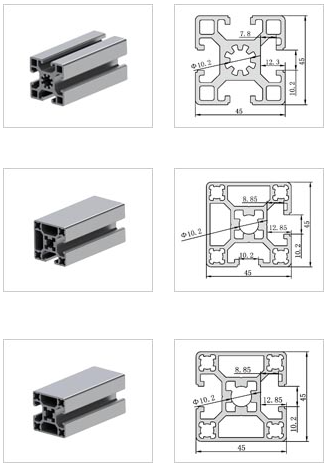

45 series

45 series aluminum profiles are high-strength, high-load-bearing frame materials with high physical properties and yield resistance, and are mainly suitable for the design and assembly of large-scale industrial load-bearing frames; 45 series aluminum profiles have a variety of specifications, which can be selected according to different technical requirements, including 4590 and 9090 heavy-duty frame profiles, which can be used for the construction of large-scale equipment frames, aircraft maintenance platforms, three-dimensional storage and other high-load frame products.

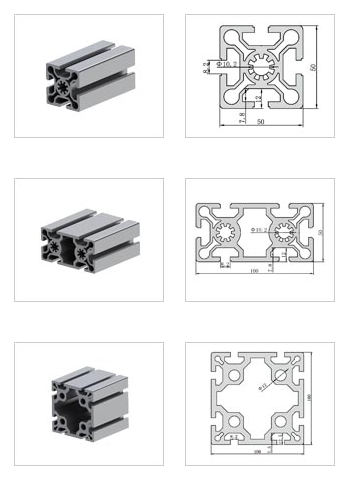

50 series

50 series aluminum profiles have relatively few specifications, including: 5050, 50100, 100100 and other specifications, which are heavy frame materials; The groove width of 50 series profiles is less than 8mm, which can be quickly assembled by using special fasteners for 40 series groove 8 profiles and 50 series special connection accessories;Among the 50 series aluminum profiles, the 100100 specification profiles are commonly used heavy-duty frame materials, which are mainly suitable for the assembly and construction of high-strength, high-load-bearing and high-performance frame structures, such as three-dimensional warehouses, production line treads, aircraft maintenance platforms, etc.
